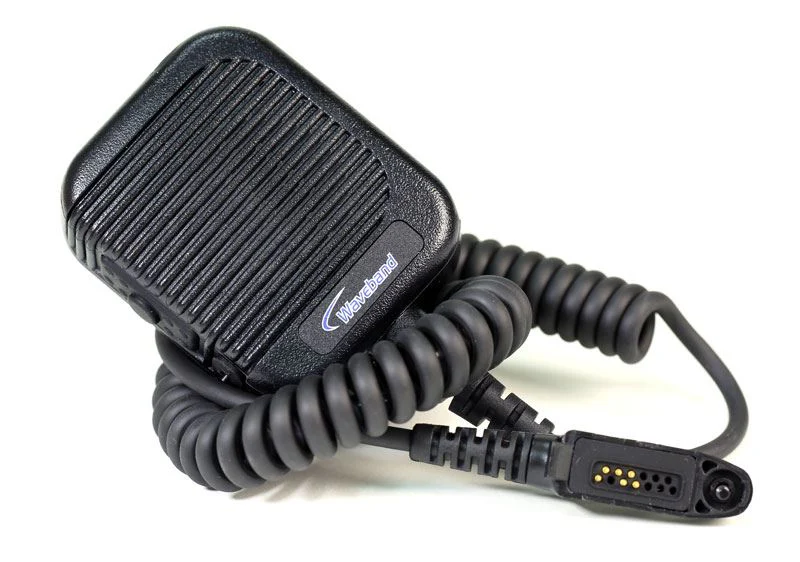

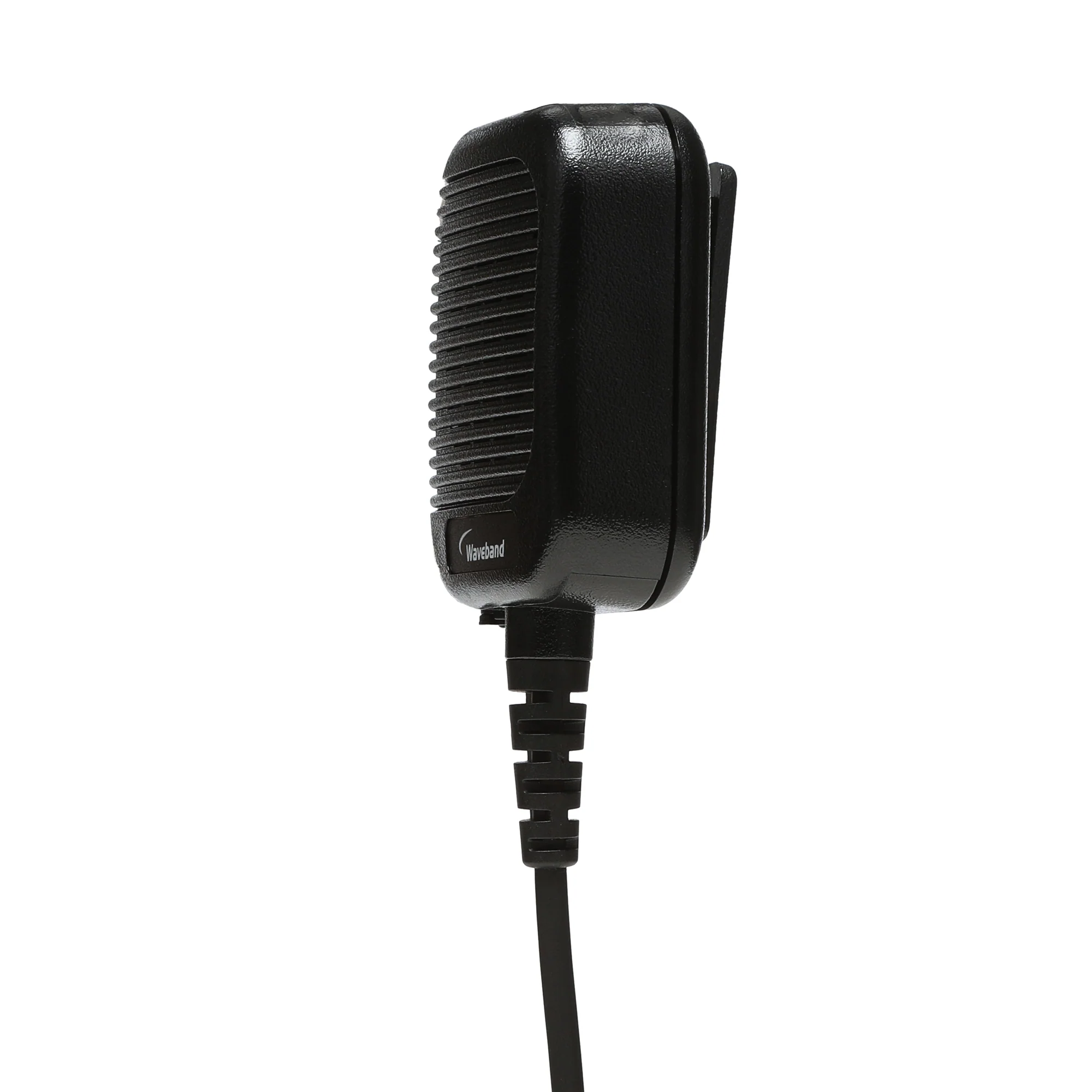

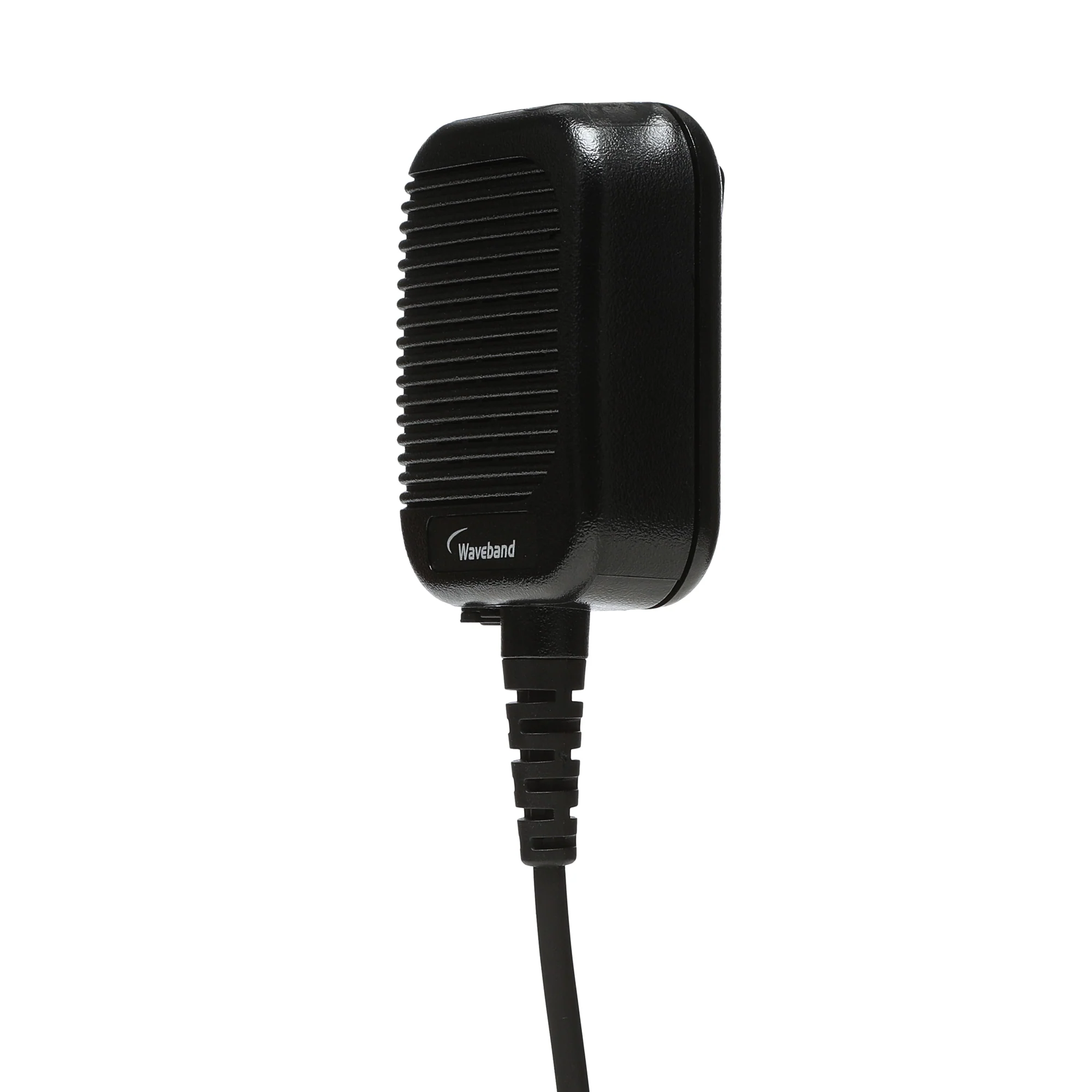

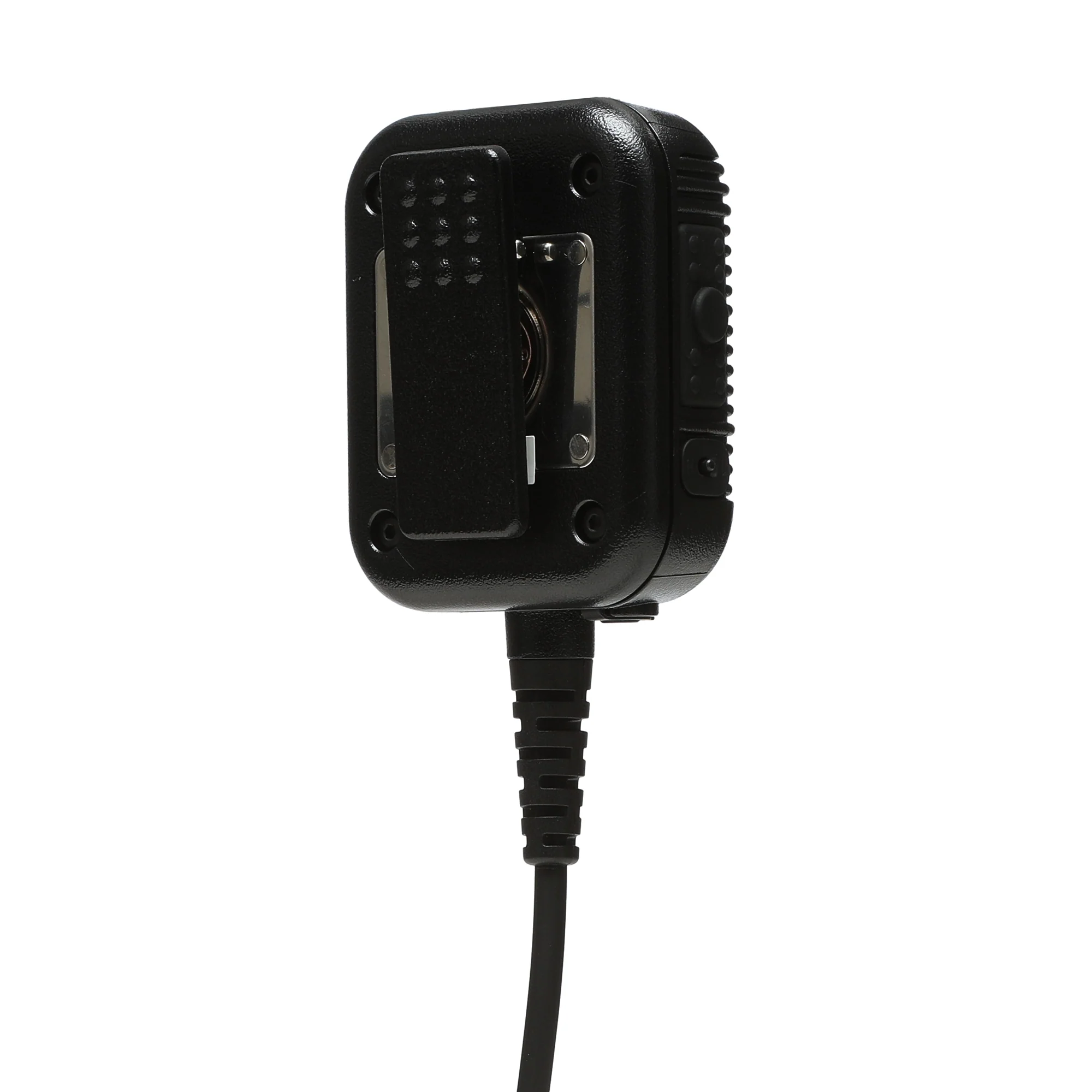

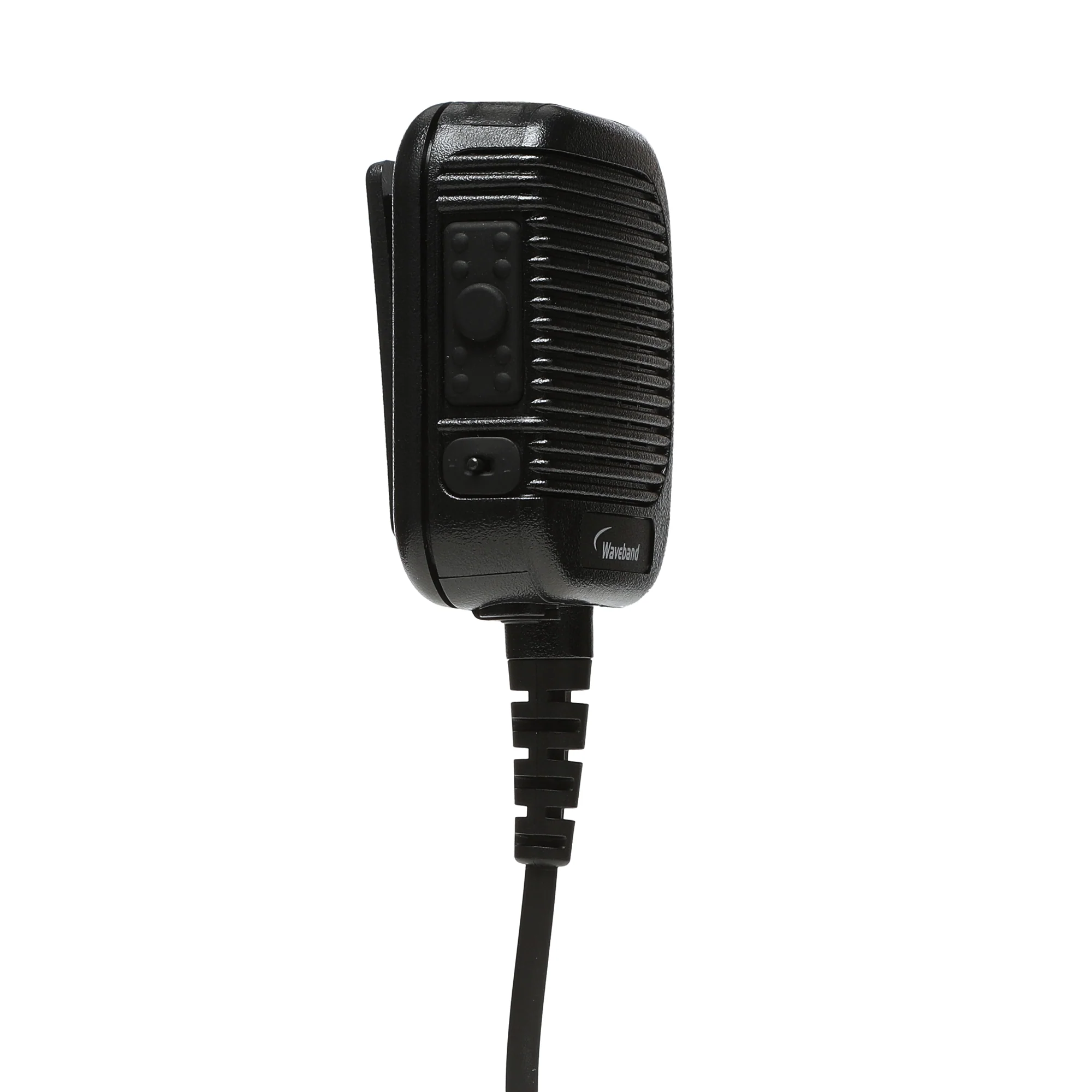

Remote Speaker Microphone - Submersible

Public Safety Grade fully waterproof/Submersible Mil Spec 810F certified speaker microphone with volume control and 3.5mm accessory jack.

Compatible with

Motorola Series: EX500, EX600, GL2000, GP328plus, GP338plus, PTX760Plus, GP344, GP388, PRO5150Elite

Relm Series: RPV3000, 3600/RPU3000, 3600

Hytera Series: TC380M/370M, TC780M, TC-780, TC610P

Kirisun Series: PT7200, TC3000

CABLING
 - Jacket: 5.5 Polyurethane, Kevlar Reinforced

MECHANICAL
 - Axial Pull at Speaker Mic Head: 50lbs

ENVIRONMENTAL
 - RoHS Compliant
 - Kevlar Reinforced Professional Grade - MILSPEC 810F

SPEAKER
 - Transducer: Moving coil dynamic speaker
 - Impedance: 8 ±15% @1KHz
 - Sensitivity: 120 dB±10%@1KHz
 - Resonance: freq (F0) 400HZ±20%
 - Frequency: response F0~9KHz
 - Rated input power: 0.5W
 - Maximum input power: 1W

MICROPHONE
 - Type: Noise Cancelling (available without)
 - Transducer: Electret condenser microphone
 - Sensitivity: -34±2dB@1KHz 2.2K 3V 0dB=1v/pa
 - Impedance: Max:2.2k @1KHz
 - Directivity: Omni-directional
 - Frequency: 100Hz—16000Hz
 - Max operation voltage: 10V
 - Standard operation voltage: 3V
 - Current consumption Max: 0.5mA
 - S/N ratio Min: -34dB @1KHz

CERTIFIED MIL-STD-810F
 - Low Pressure Altitude (MIL-STD-810F, Proc. 500.4)
 - High Temperature Storage, Cyclic (MIL-STD-810F, Method 501.4)
 - High Temperature Operation, Cyclic (MIL-STD-810F, Method 501.4)
 - Low Temperature - Storage (MIL-STD-810F, Method 502.4)
 - Low Temperature - Operation (MIL-STD-810F, Method 502.4)
 - Temperature Shock (MIL-STD-810F, Method 503.4)
 - Solar Radiation (MIL-STD-810F, Method 505.4)
 - Wind Driven Rain (MIL-STD-810F, Method 506.4)
 - Humidity (MIL-STD-810F, Method 507.4)
 - Salt Fog (MIL-STD-810F, Method 509.4)
 - Dust Robustness (MIL-STD-810F, Method 510.4)
 - Humidity (MIL-STD-810F, Method 507.4)
 - Salt Fog (MIL-STD-810F, Method 509.4)
 - Random Vibration (MIL-STD-810F, Method 514.5)
 - Mechanical Shock Exposure (MIL-STD-810F, Method 516.5)
 - Shock-Transit Drop (MIL-STD-810F, Method 516.5)
 - Temporary Water Immersion IP67: 1m 31min

Cable Stretch Cycle Exposure:
50,000 stretches, 25,000 rock and twist cycles - 270 degrees rock and 90 degrees twist. 3:1 extension ratio 25C
 - Cable Pull Strength at Head: 50lbs
 - Electro Static Discharge (ESD) Immunity Test: (IEC/EN 61000-4-2)

Equivalent to:  Motorola RMN5066B, RMN5038A, RMN5088 Otto Evolution V2-10173

Waveband# WX-8000-M5-R
